Demo 2: CAST Stack Align S4 to S1

import CAST
import os, torch
import warnings
warnings.filterwarnings("ignore")

work_dir = '$demo_path' #### input the demo path

To align the slices with preserving the cell organization, CAST_STACK() is used to perform gradient-descent-based rigid registration and free-form deformation (FFD) to get a proper transformation.

Here are the parameters used in CAST_STACK:

- coords_raw - The dictionary of the coordinates matrix with sample name.

- embed_dict - The dictionary of the graph embedding generated by CAST Mark with sample name.

- output_path - The output folder path.

- graph_list - The list of [query sample, reference sample]. The query sample will be aligned to the reference sample.

- params_dist - The parameter dictionary for CAST Stack.

The params_dist is of class CAST_Stack.reg_params and contains a number of parameters, including:

1. General parameters including the following:

   • dataname - The dataset name.

   • gpu - The index of the gpu if the GPU device is available.

2. Affine parameters including the following:

   • iterations - Iterations of the affine transformation.

   • alpha_basis - The coefficient for updating the affine transformation parameter.

   • dist_penalty1 - Distance penalty parameter in affine transformation. When the distance of the query cell to the nearest neighbor in reference sample is greater than a distance threshold (by default, average cell distance), CAST Stack will add additional distance penalty. The initial cost function value of these cells will be multiplied by the dist_penalty1. The value 0 indicates no additional distance penalty.

   • bleeding - When the reference sample is larger than the query sample, for efficient computation, only the region of the query sample with bleeding distance will be considered when calculating the cost function.

   • d_list - CAST Stack will perform pre-location to find an initial alignment. The value in the d_list will be multiplied by the query sample to calculate the cost function. For example, 2 indicates the two-fold increase of the coordinates.

   • attention_params - The attention mechanism to increase the penalty of the cells. It is invalid when the dist_penalty = 0.

     • 1st - attention_region - The True/False index of all the cells of the query sample or None.

     • 2nd - double_penalty - The average cell distance / double_penalty will be used in distance penalty for the cells with attention.

     • 3rd - penalty_inc_all - The additional penalty for the attention cells. The initial cost function value of these cells will be multiplied by penalty_inc_all.

     • 4th - penalty_inc_both - The additional penalty for the cells with distance penalty and attention. The initial cost function value of these cells will be multiplied by (penalty_inc_both/dist_penalty + 1).

3. FFD parameters including the following:

   • dist_penalty2 - Distance penalty parameter in FFD. Refer to dist_penalty1.

   • alpha_basis_bs - The coefficient for updating the FFD parameter.

   • meshsize - mesh size for the FFD.

   • iterations_bs - Iterations of the FFD.

   • attention_params_bs - The attention mechanism to increase the penalty of the cells. Refer to attention_params.

   • mesh_weight - The weight matrix for the mesh grid. The same size of the mesh or None.

Load Data

### Load the data and set up output path

# Set up the output path
output_path = f'{work_dir}/demo2_CAST_Stack_Align_S4_to_S1/demo_output'
os.makedirs(output_path,exist_ok = True)

# Load the data
coords_raw = torch.load(f'{output_path}/../data/demo2_coords_raw.pt',map_location='cpu')
embed_dict = torch.load(f'{output_path}/../data/demo2_embed_dict.pt',map_location='cpu')
graph_list = ['S4','S1'] # [query_sample, reference_sample]

Run

### Run CAST Stack

from CAST import CAST_STACK
from CAST.CAST_Stack import reg_params


# Setting up parameters
params_dist = CAST.reg_params(dataname = graph_list[0], # S2 is the query sample
                            gpu = 0 if torch.cuda.is_available() else -1,
                            diff_step = 5,
                            #### Affine parameters
                            iterations=500,
                            dist_penalty1=0,
                            bleeding=500,
                            d_list = [3,2,1,1/2,1/3],
                            attention_params = [None,3,1,0],
                            #### FFD parameters
                            dist_penalty2 = [0],
                            alpha_basis_bs = [500],
                            meshsize = [8],
                            iterations_bs = [400],
                            attention_params_bs = [[None,3,1,0]],
                            mesh_weight = [None])
params_dist.alpha_basis = torch.Tensor([1/1000,1/1000,1/50,5,5]).reshape(5,1).to(params_dist.device)

# Run CAST Stack

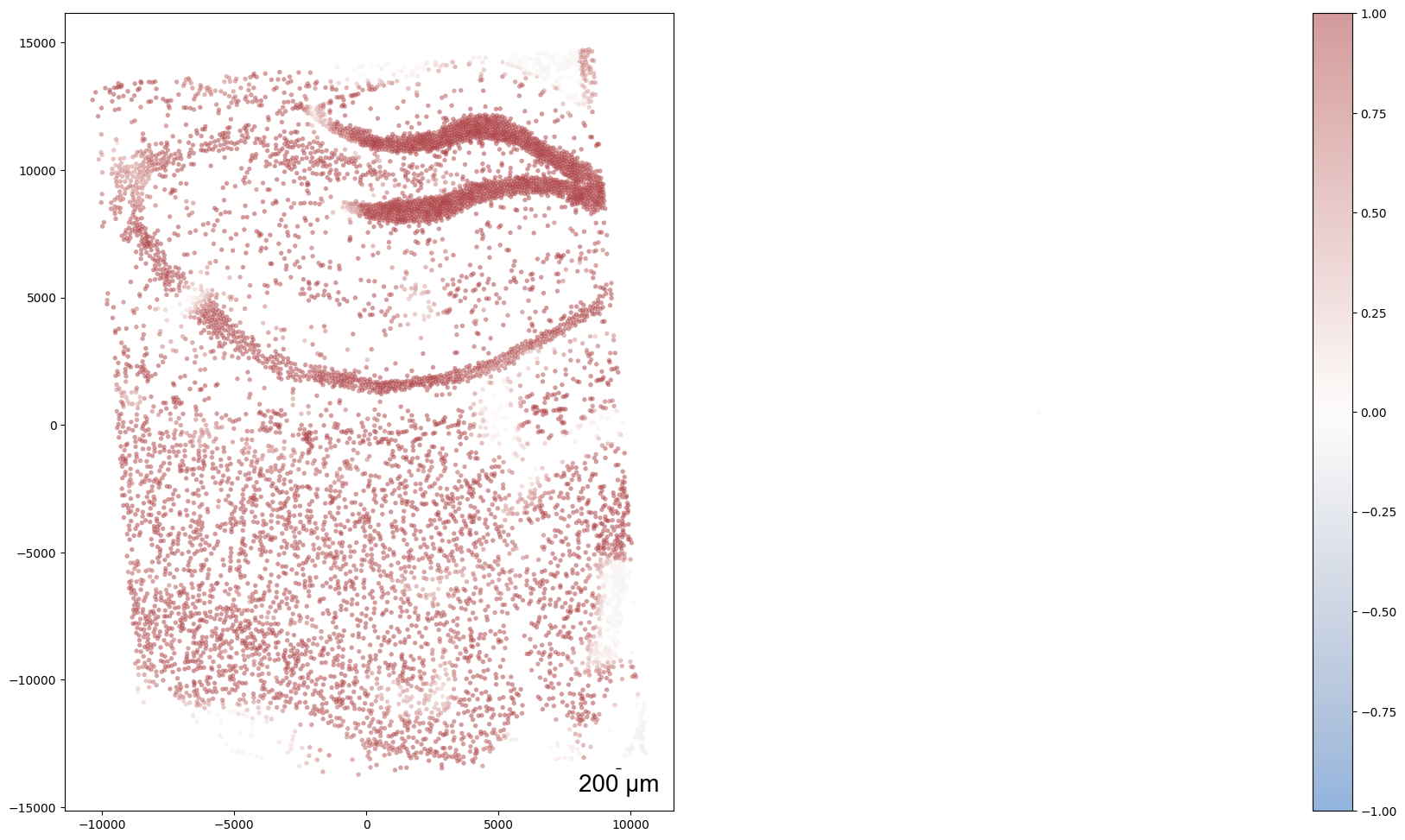

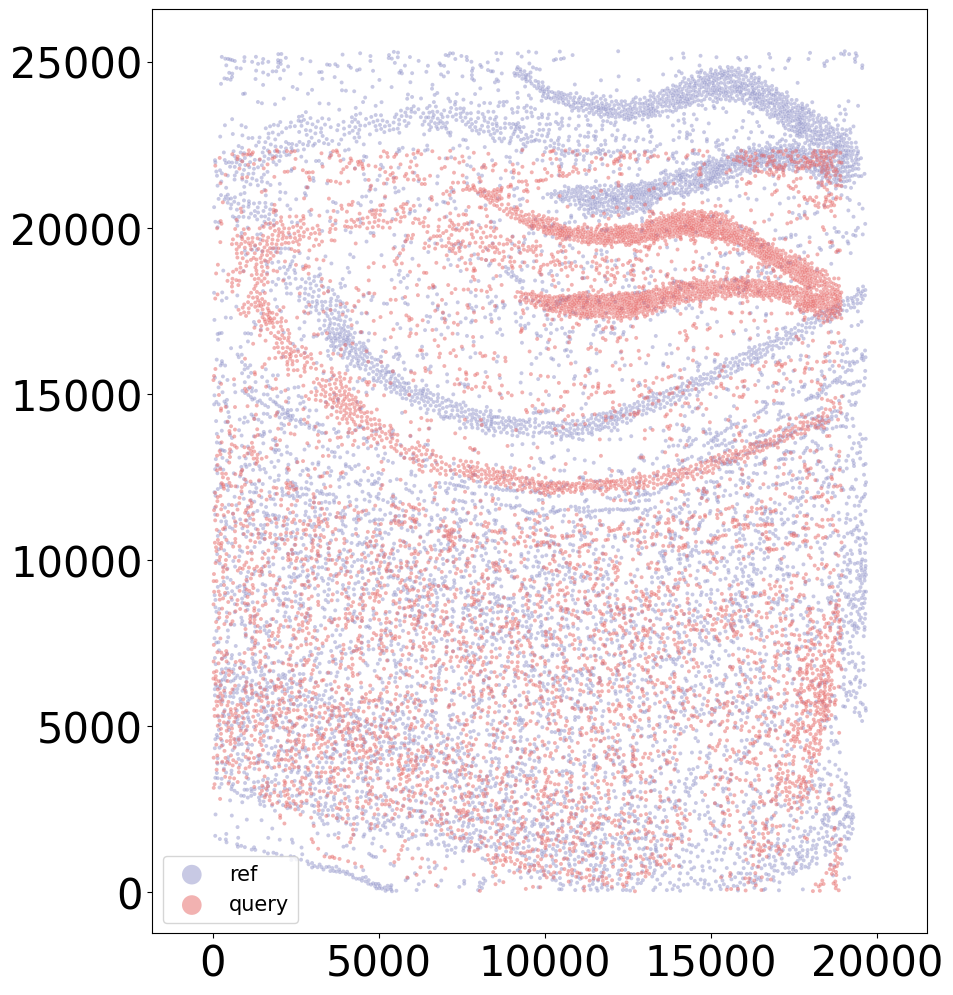

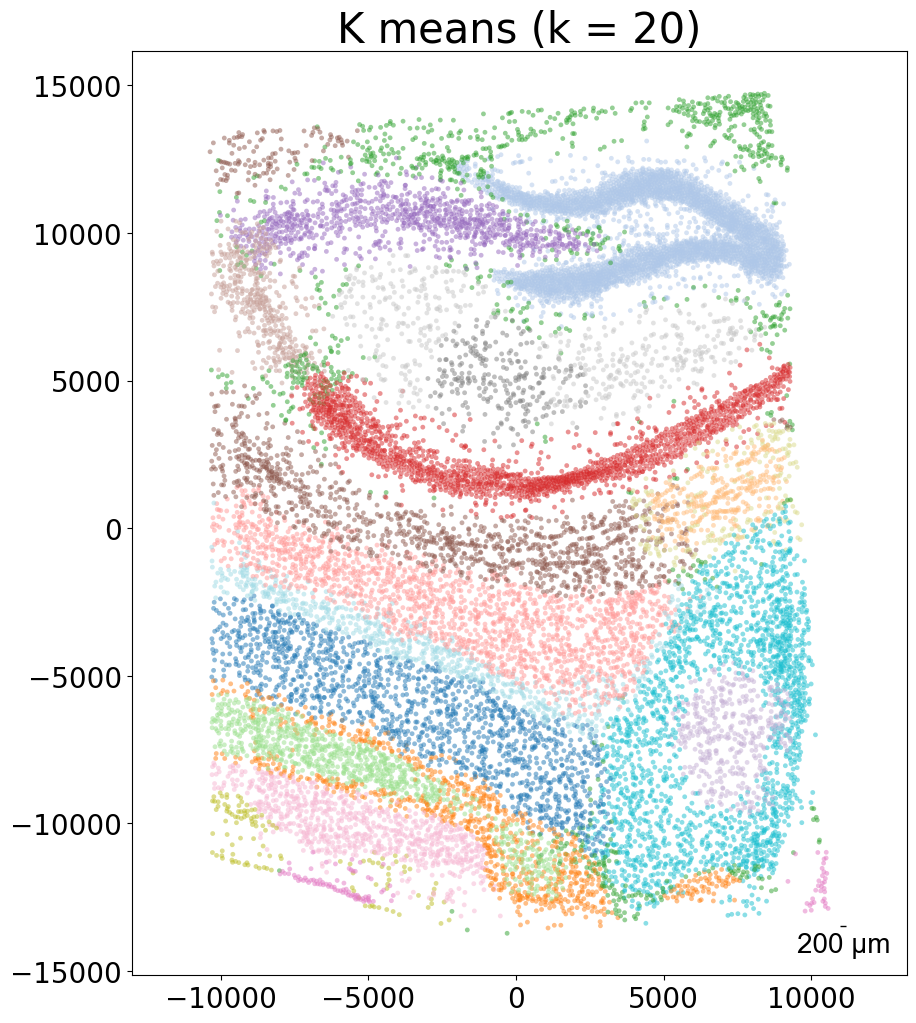

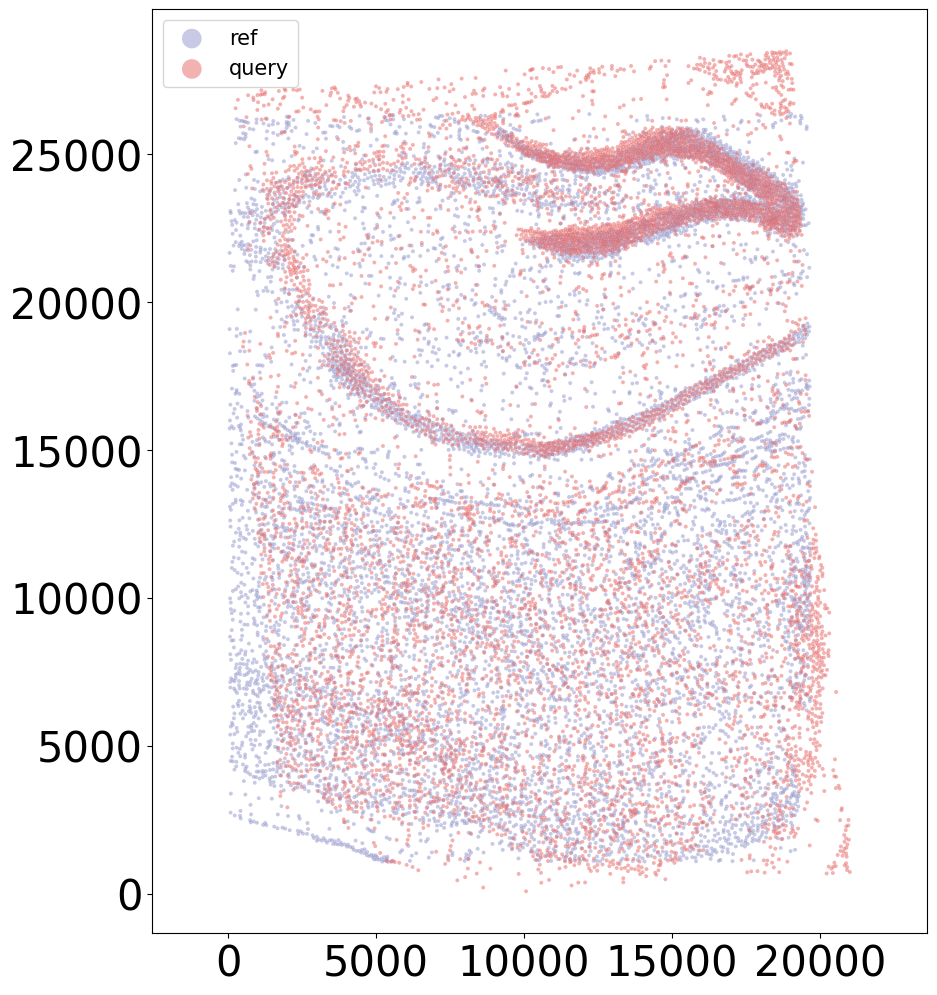

coords_final = CAST.CAST_STACK(coords_raw,embed_dict,output_path,graph_list,params_dist)

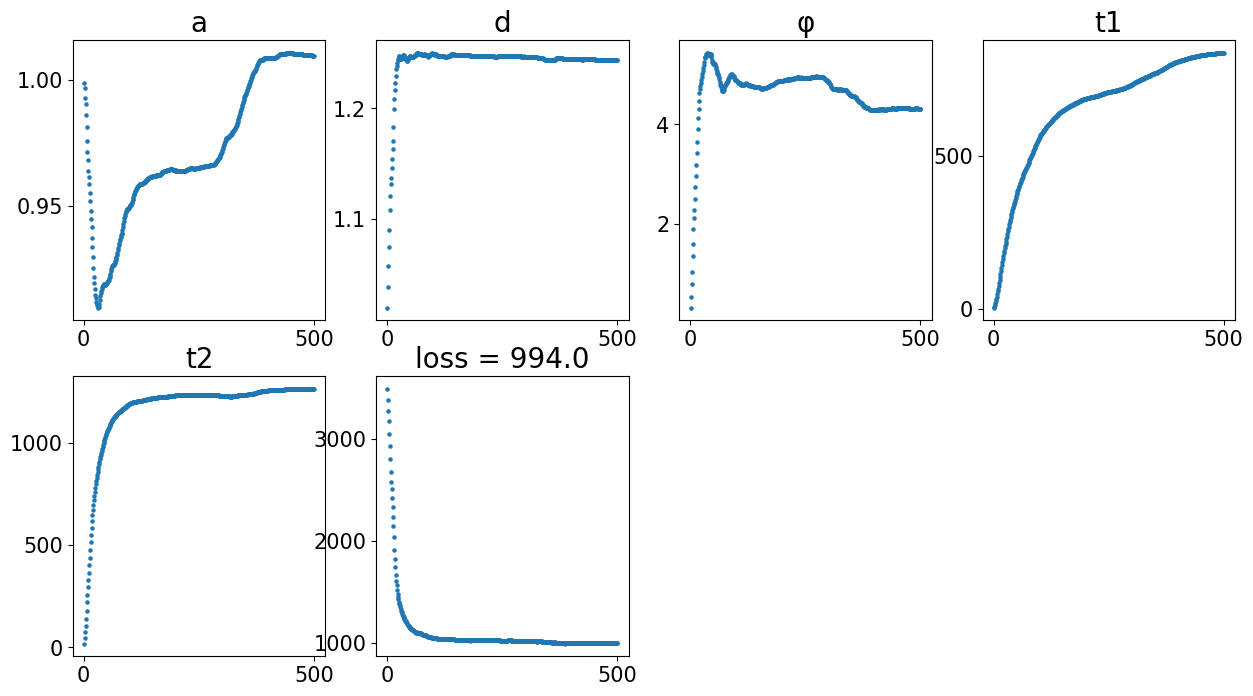

Loss: 993.963: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 500/500 [00:15<00:00, 32.19it/s]

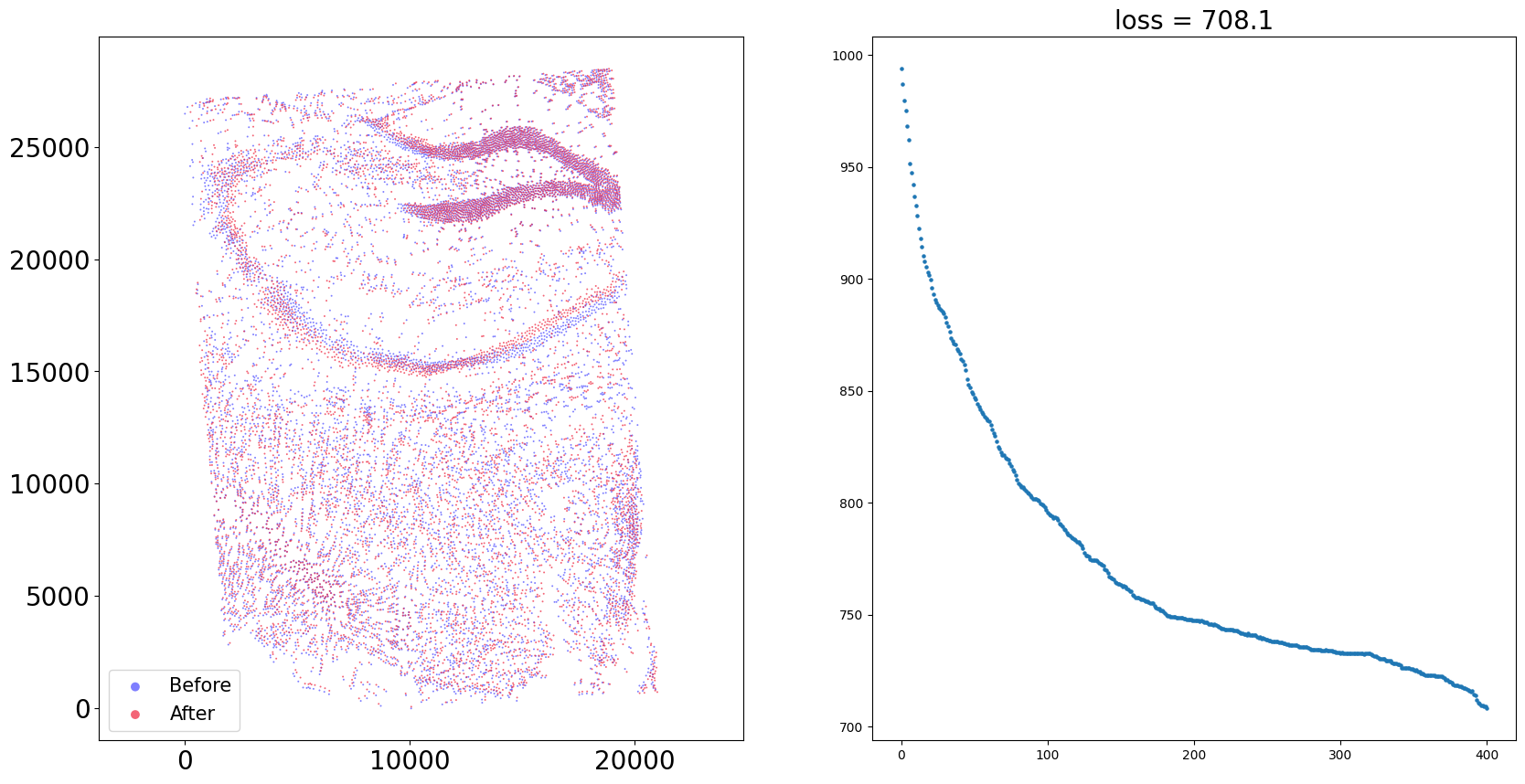

Loss: 708.108: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 400/400 [00:29<00:00, 13.66it/s]
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 400/400 [00:02<00:00, 190.70it/s]
